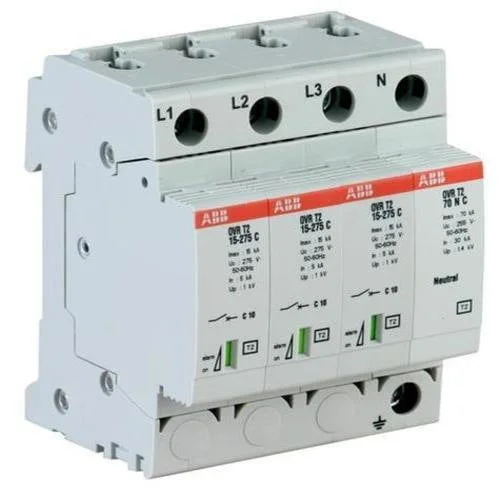

ABB SPD 40K

• Standards:

  IEC 61643-11 / EN 61643-11

• Type of Low Voltage Distribution System:

  TN-S
  IT

• Suitable For:

  To protect the systems against the transient overvoltage (lightning)

• Rated Voltage (U_r):

  400 V AC

• Nominal AC Voltage of the System (U_o):

  400 / 690 V

• Voltage Rating DC:

  560 V

• Voltage Protection Level ( Up):

  1.8 kV
  (L-N) 1.8 kV
  (N-PE) 3.8 kV

• Maximum Continuous Operating Voltage (U_c):

  (L-PE) 440 V

• Temporary Overvoltage Test Value (U_T):

  581 V

• Rated Service Short-Circuit Breaking Capacity (I_cs):

  100 kA

• Discharge Current:

  Nominal (8 / 20 µs) 20 kA
  I (max, 8 / 20 µs) 20 kA

• Impulse Current:

  I (imp, 10 / 350 µs) 2 kA

• Short Circuit Withstand Icc:

  100 kA

• Power Loss:

  17 mW

• Arrester Class:

  II

• Number of Protected Poles:

  4

• Number of Poles:

  4

• Number of Conductors:

  4

• Position of Neutral Terminals:

  Right

• Transmission Standard:

  Optic

• Version:

  Plug-in

• Mounting Type:

  DIN-Rail

• Product Type:

  QS

• Options Provided:

  Residential, commercial building.

• Auxiliary Circuit Load:

  Minimum –
  Maximum –

• Preventive Maintenance Feature:

  No

• Status Indicator:

  Yes

• Fuse Size:

  4 modular spacing

Environmental

• Degree of Protection:

  IP20

• Maximum Operating Altitude Permissible:

  Without Derating 5000

• RoHS Status:

  Following EU Directive 2011/65/EU

• RoHS Information:

  9AKK108466A4410

• Conflict Minerals Reporting Template (CMRT):

  9AKK108468A3363

Dimensions

• Width in Number of Modular Spacings:

  4

• Product Net Width:

  71.2 mm

• Product Net Height:

  88 mm

• Product Net Depth / Length:

  58 mm

• Product Net Weight:

  0.48 kg

Ordering

• Package Level 1 Units:

  box 1 piece

• Package Level 1 Gross Weight:

  500 g

Certificates and Declarations

• CB Certificate:

  2CTC432024G1701

• CQC Certificate:

  9AKK107680A1974

• Declaration:

  2CTC432056G1701

• Declaration of Conformity – CE:

  9AKK108466A4410

Installation

• Instructions and Manuals:

  2CTC432096M1701

Popular Downloads

• Data Sheet, Technical Information:

  2CTC432241D0201

• Mechanical Drawings:

  2CTC800021F0900.pdf
  2CTC800021F0901.dxf
  2CTC800021F0902.stp
  2CTC800021F0903.igs

Classifications

• ETIM 8:

  EC000941 – Surge protection device for power supply systems

• ETIM 9:

  EC000941 – Surge protection device for power supply systems

• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)

• WEEE B2C / B2B:

  Business To Business

• CN8:

  85363090

• eClass:

  V11.0 : 27130805

• Object Classification Code:

  141DEC
