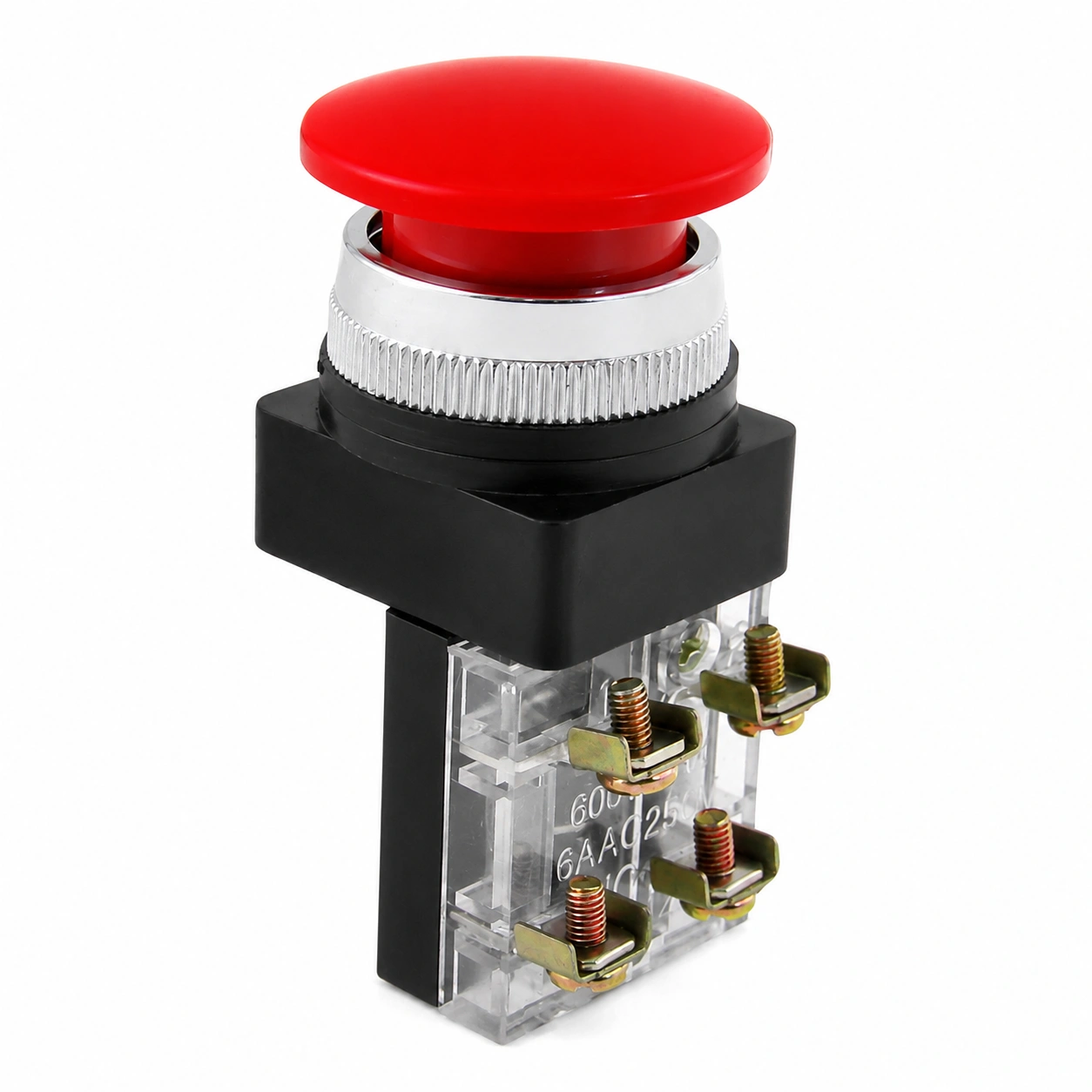

Mushroom Head Push Button Switch 38mm 1NO+1NC, 6A, AC 600V

This Mushroom Head Push Button Switch is a reliable and durable component for a variety of industrial and commercial control applications. With a momentary action and a versatile 1 NO + 1 NC contact configuration, it provides precise control over a wide range of circuits. The switch is built to handle high electrical loads, with a maximum rated voltage of AC 600V and a current rating of 6A. Its prominent, red 38 mm mushroom head is easy to locate and operate, enhancing both safety and efficiency. Constructed from a combination of durable plastic and metal, this switch is designed for a long service life and is easy to install via its 4 screw terminals and standard 30 mm panel cutout.

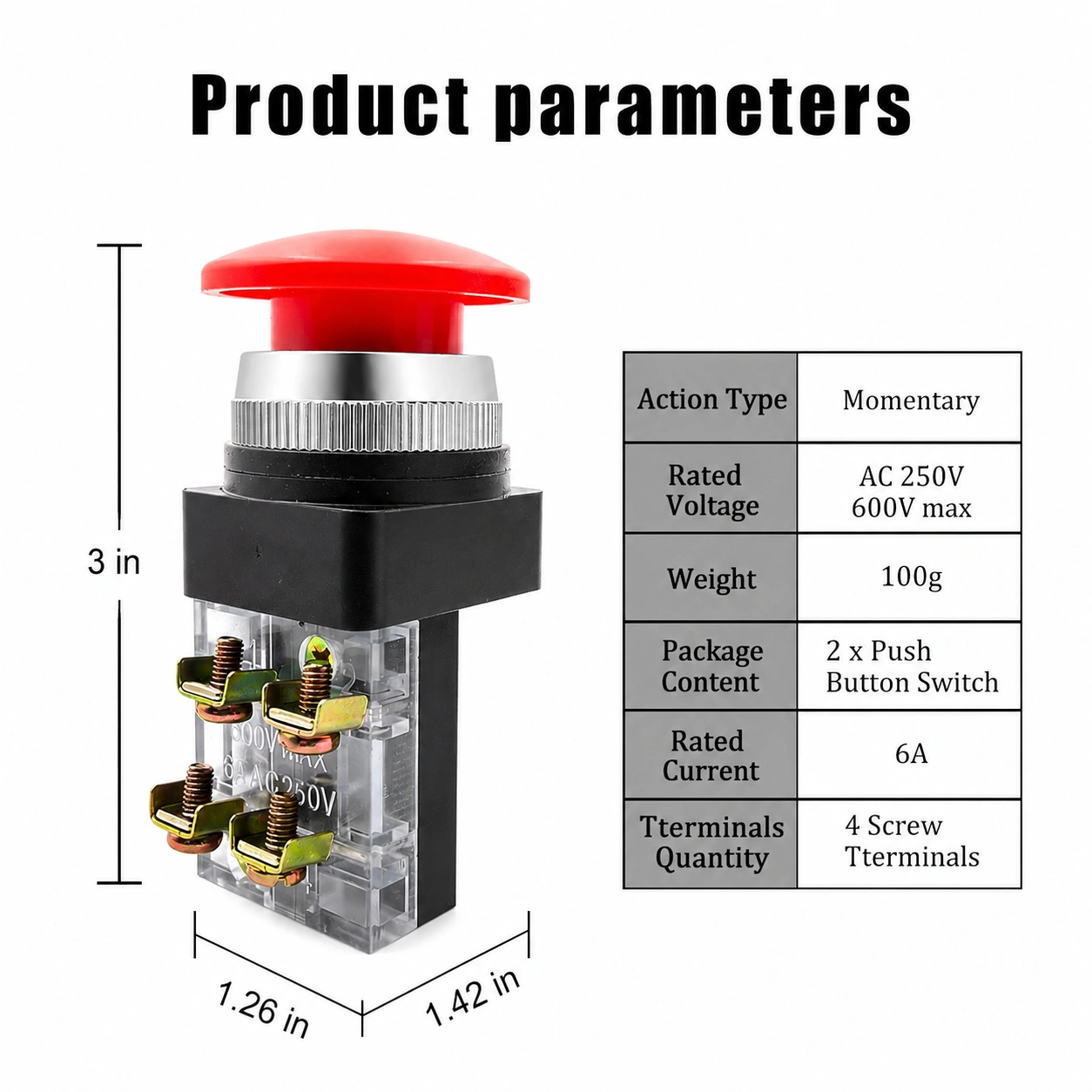

Specifications:

• Product Name: Push Button Switch
• Action Type: Momentary
• Contact Type: 1 NO + 1 NC
• Rated Voltage: AC 250V, max. 600V
• Rated Current: 6A
• Terminals: 4 screw terminals
• Button Diameter: 38 mm / 1.5″
• Panel Cutout Diameter: 30 mm / 1.2″
• Fit Panel Thickness: max 5 mm / 0.2″
• Overall Size: 40 x 35 x 78mm / 1.6″ x 1.4″ x 3.1″ (LWH)
• Material: Plastic, Metal
• Color: Red, Black
• Weight: 49g
• Package Content: 1 x Push Button Switch

Why Choose This Product?

• Versatile Control: The dual NO/NC contacts provide flexibility for a wide range of circuit control applications.
• High-Capacity Operation: Designed to handle high voltages and currents, making it suitable for demanding industrial machinery.
• Simple & Secure Installation: The standard panel cutout and screw terminals ensure quick, easy, and reliable wiring.
• Durable & Reliable: Constructed from high-quality materials to provide long-lasting and consistent performance.
