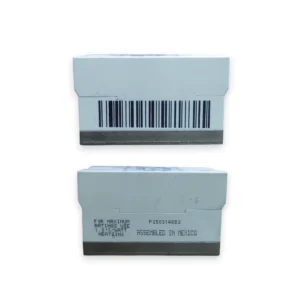

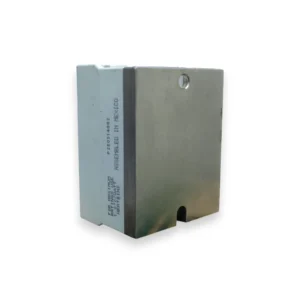

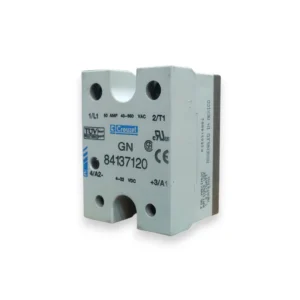

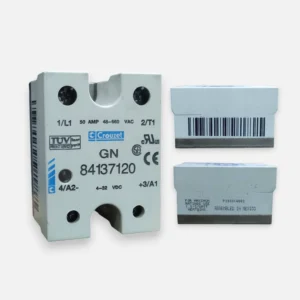

Crouzet 84137120 GN Series Single Phase SSR – 50A 660VAC 4-32VDC

The Crouzet GN Series Solid State Relay is a high-performance electronic switching solution designed for demanding industrial applications. Unlike traditional mechanical relays, this SSR has no moving parts, ensuring silent operation, ultra-fast switching, and an exceptionally long lifespan. It features Zero-Cross switching to minimize electrical noise and inrush current, making it ideal for controlling resistive loads like heating elements or inductive loads like motors. With integrated overvoltage protection and an IP20 touch-safe cover, it offers superior safety and reliability in a compact “hockey puck” design.

Technical Specifications

• Model Series: GN Series (e.g., 84137120)
• Switching Type: Zero Crossing (Low Noise)
• Rated Load Current: 50A (Other variants available from 10A to 125A)
• Output Voltage Range: 48V AC – 660V AC
• Control Input Voltage: 4V DC – 32V DC
• Input Current: Approx. 14mA – 15mA (PLC Compatible)
• Output Device: SCR (Silicon Controlled Rectifier) for rugged performance
• Operating Temperature: -40°C to +80°C
• Protection Rating: IP20 (Touch-Safe integrated cover)
• Certifications: CE, cURus (UL), CSA, VDE, and RoHS compliant

Why Choose This Product?

• Extreme Longevity: With no mechanical contacts to wear out, it offers a MTBF (Mean Time Between Failures) of over 7 million hours, significantly reducing maintenance costs.
• Silent & Precise Switching: The Zero-Cross technology ensures clean switching, reducing electromagnetic interference (EMI) and protecting sensitive nearby electronics.
• High Thermal Efficiency: Built with high-quality internal components and a copper bottom plate for optimal heat dissipation (when used with a proper heatsink).
• Industrial Grade Safety: Features built-in overvoltage protection (TVS diode) to handle voltage spikes and an integrated safety cover to prevent accidental contact.
• Universal Compatibility: The wide 4-32VDC control range makes it compatible with most PLCs, PID controllers, and microcontrollers (like Arduino or Raspberry Pi).
• Vibration Resistant: Its solid-state construction makes it immune to mechanical shocks and vibrations, perfect for harsh industrial environments.
